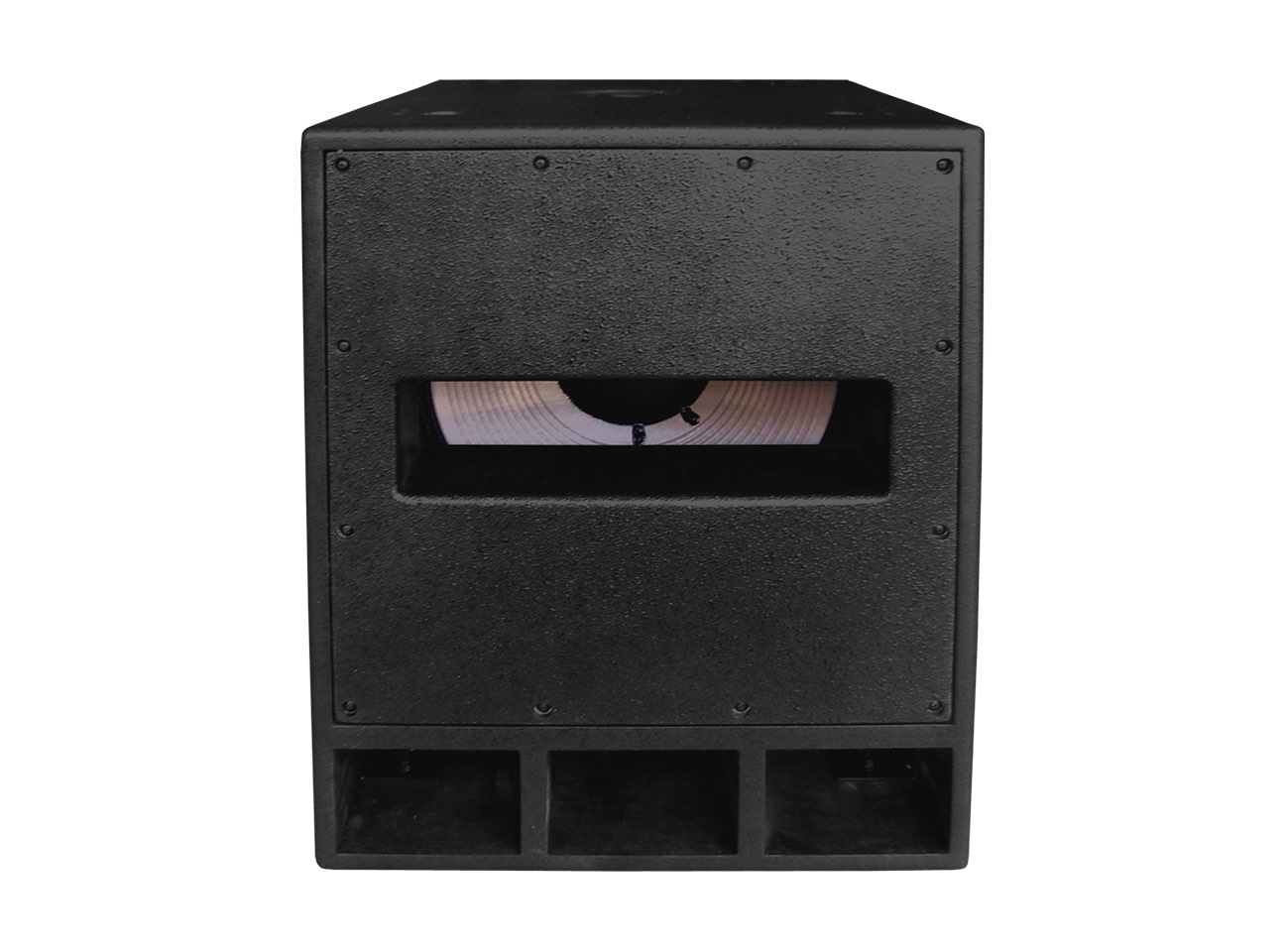

| PS3-1000 (Subwoofer) |
 |
 |
 |
| |
|
| Technical Specification |
| Frequency Response +/-3dB |
40Hz - 80Hz to 200Hz |
| Axial Sensitivity 1w@1m |
99dB |
| Maximum SPL @1m |
130dB |
| Subwoofer Amplifier |
1 x 600W RMS / Class AB |
| Sat & Mid/High Unit Amplifier |
2 x 200W RMS / Class AB |
| Connections |
2 x XLR I/P, 2 x jack mic I/P, 2 x XLR O/P |
| |
2 x Speakon satellite O/P |
| Subwoofer |
1 x 15" |
| Operating Temperature Range |
-10°C to 55°C (14°F to 131°F) |
| Dimensions [HxWxD] |
545 x 450 x 635 mm. |
| Weight |
48.5 kg. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
