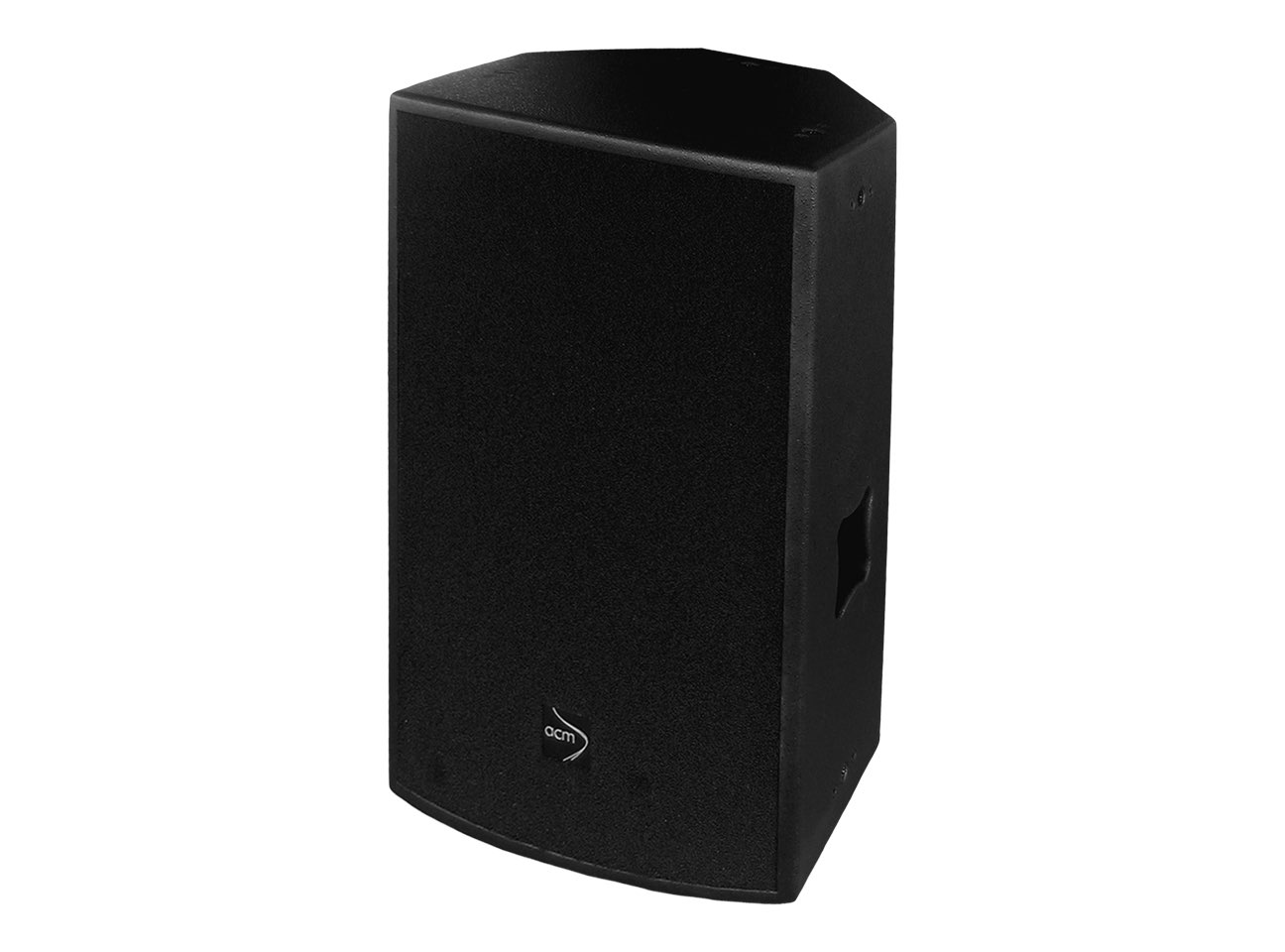

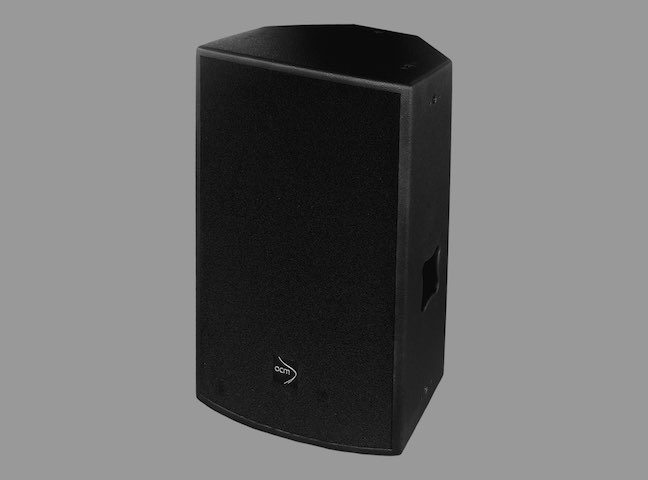

SRL15

Technical Specification

Frequency Range (-10dB)

45Hz - 20KHz

Frequency Response (-3dB)

50Hz - 20KHz

Rec. Hipass Frequency

25Hz

Axial Sensitivity

98dB (1w/1m)

Max Calculated SPL

130dB

Horizontal Coverage

90°

Vertical Coverage

60°

Rated System Power

350W continuous 1400W peak

LF Transducer

15" / 75 mm.

HF Transducer

1" / 45 mm.

Crossover Frequency

1.8KHz

Nominal Impedance

8Ω

Connector

2 x NL4 speakon

Dimensions [HxWxD]

740 x 485 x 495 mm.

Net Weight

38 kg.

Shipping Weight

41 kg.
