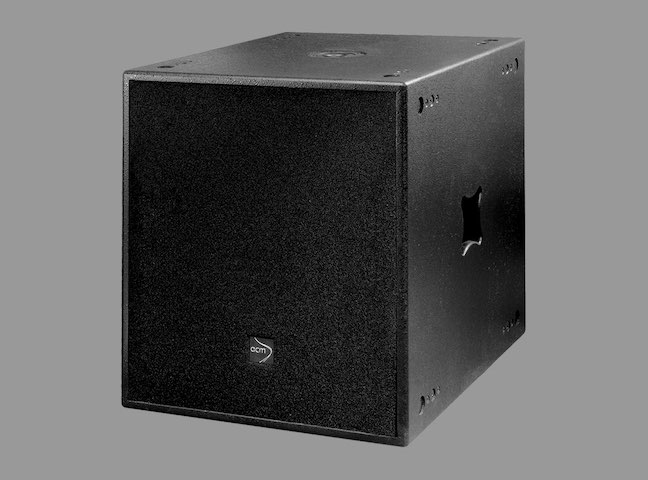

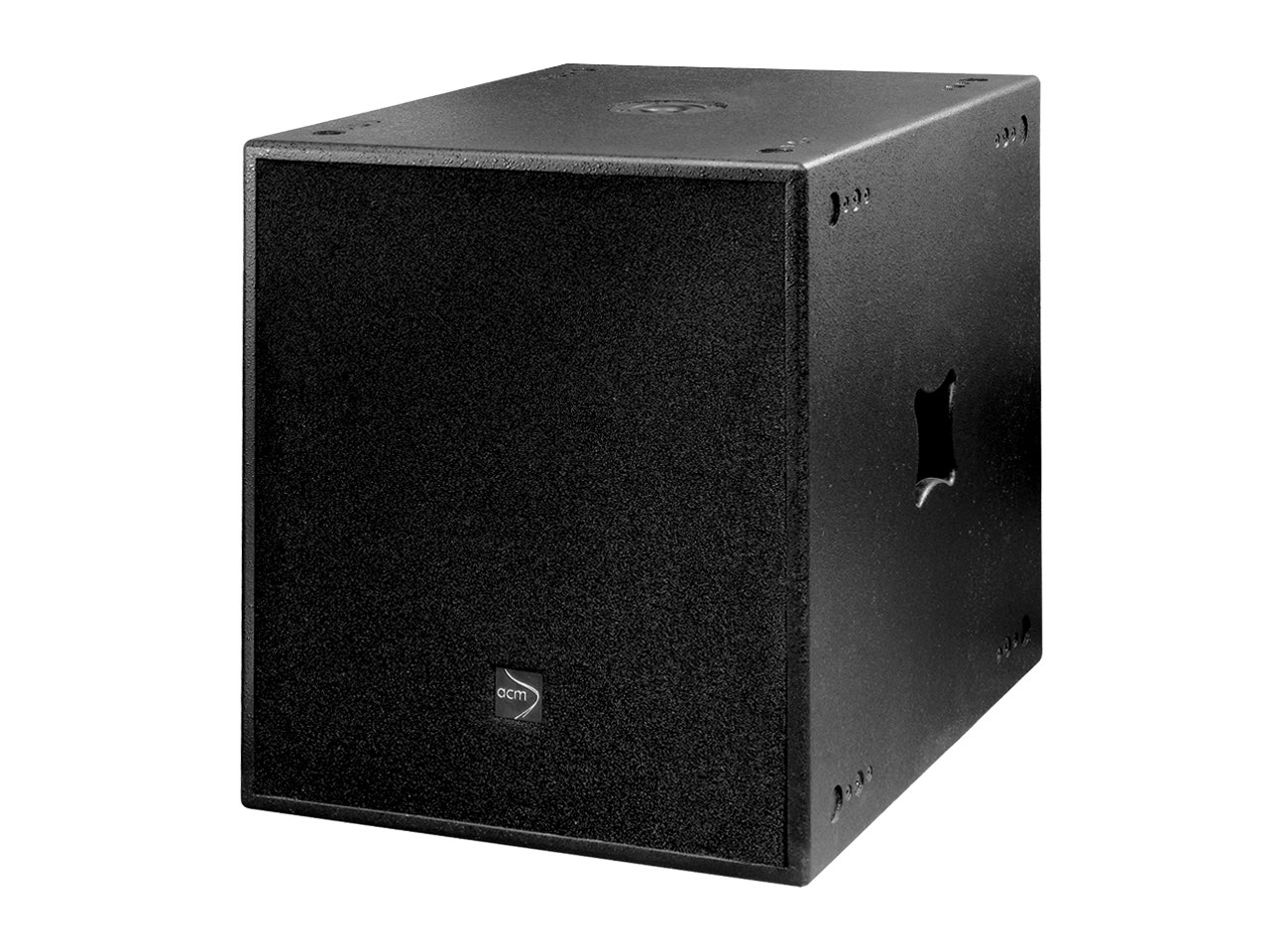

SRL18S

Technical Specification

Frequency Range (-10dB)

40Hz - 2KHz

Frequency Response (-3dB)

45Hz - 2KHz

Axial Sensitivity

97dB (1w/1m)

Max Calculated SPL

131dB

Rated System Power

600W continuous 2400W peak

LF Transducer

18" / 100 mm.

Nominal Impedance

8Ω

Connector

2 x NL4 speakon

Dimensions [HxWxD]

535 x 645 x 650 mm.

Net Weight

34.5 kg.

Shipping Weight

37 kg.
