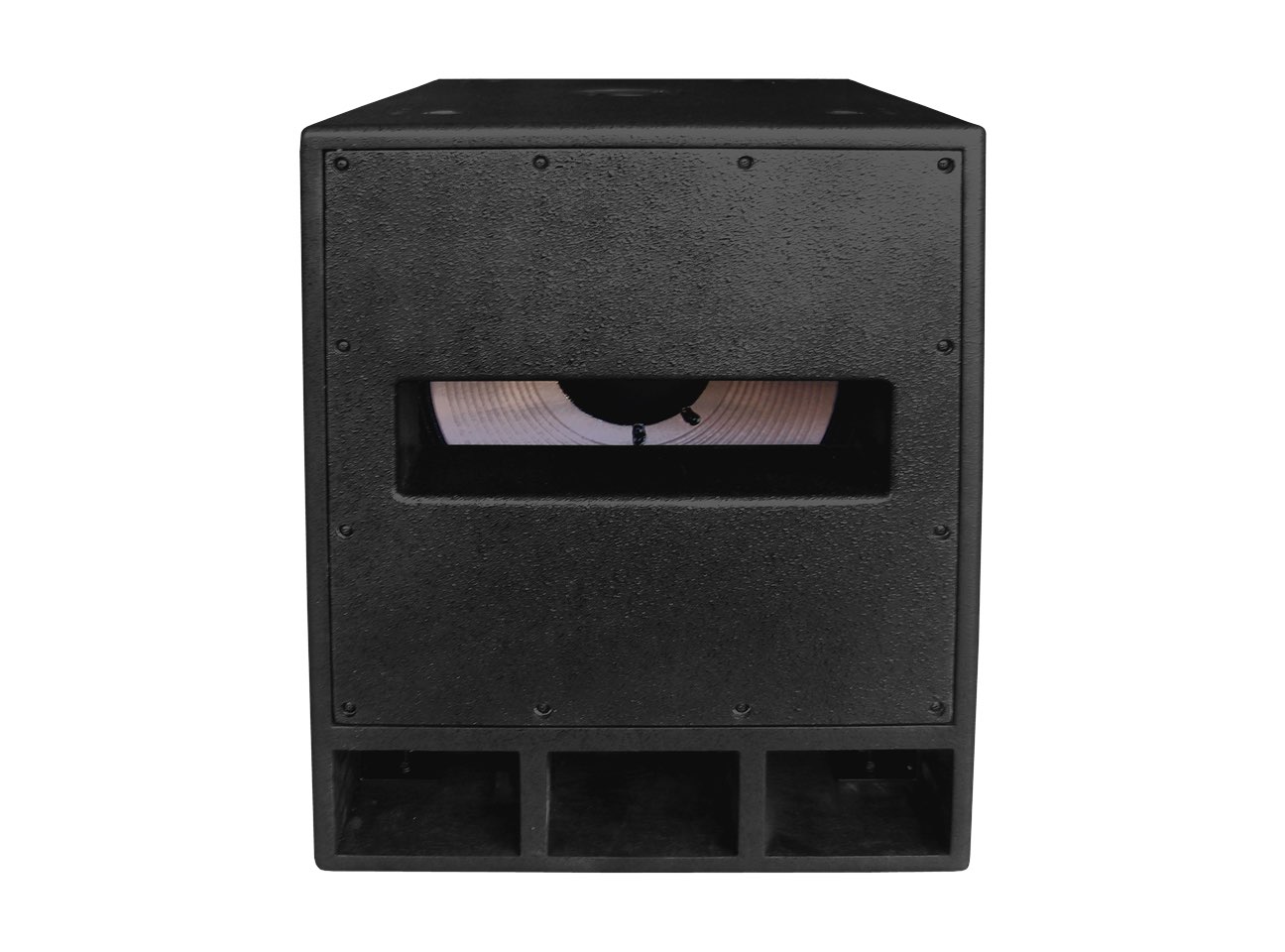

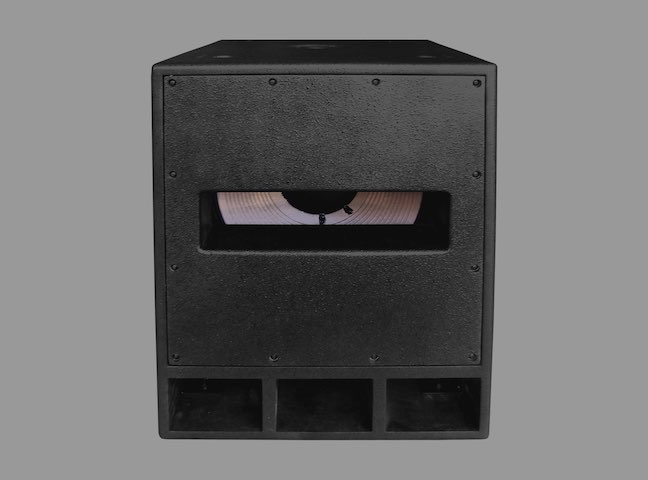

SRP115S

Technical Specification

Frequency Range (-10dB)

45Hz - 220Hz

Frequency Response (-3dB)

50Hz - 200Hz

Axial Sensitivity

99dB (1w/1m)

Max Calculated SPL

132dB

Rated System Power

600W continuous 2400W peak

LF Transducer

15" / 100 mm.

Nominal Impedance

8Ω

Connector

2 x NL4 speakon

Dimensions [HxWxD]

560 x 450 x 635 mm.

Net Weight

31 kg.

Shipping Weight

33.5 kg.
