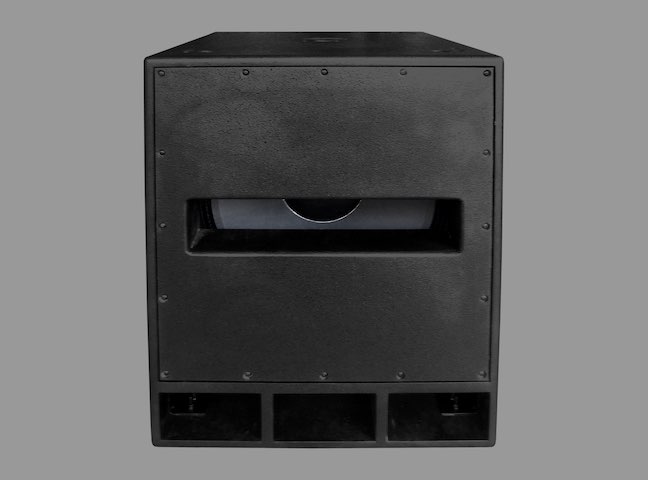

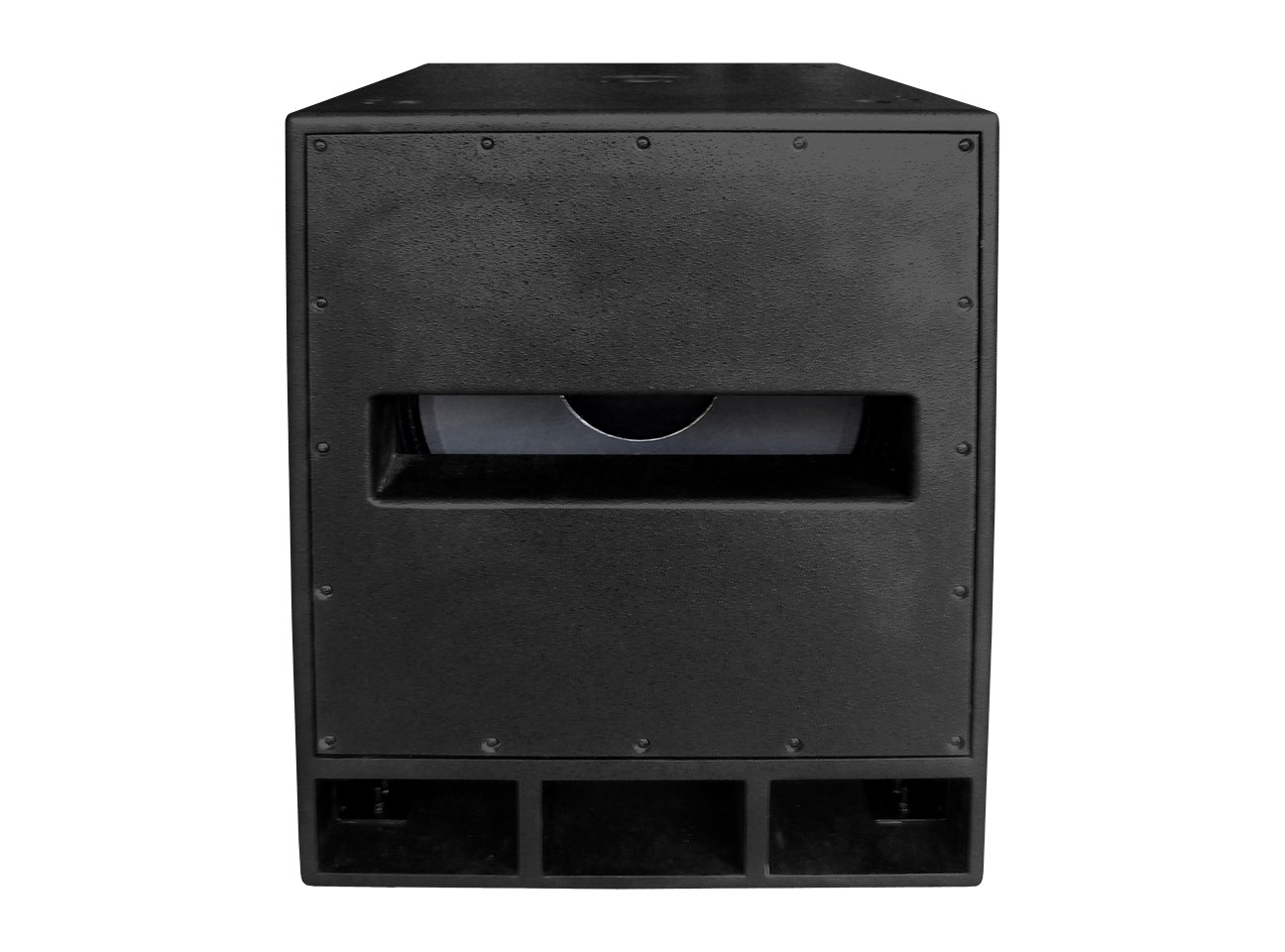

SRP118S

Technical Specification

Frequency Range (-10dB)

40Hz - 220Hz

Frequency Response (-3dB)

48Hz - 200Hz

Axial Sensitivity

99dB (1w/1m)

Max Calculated SPL

133dB

Rated System Power

650W continuous 2600W peak

LF Transducer

18" / 100 mm.

Nominal Impedance

8Ω

Connector

2 x NL4 speakon

Dimensions [HxWxD]

535 x 645 x 620 mm.

Net Weight

40.5 kg.

Shipping Weight

44k g.
